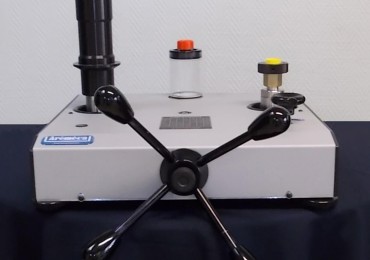

These dead weight testers are easy to use and have a robust design. They have great long-term stability.
These dead weight testers are generally used for occasional to regular calibration by laboratories but also industries.
- calibration : Our dead weight tester are calibrated under the following conditions of use : Temperature 20°C - Pressure atmos. 1013.25 hPa - Humidity 50% - acceleration 9.80665 m/s²
- fluid : Mineral or synthetic oil depending on model, colorless, compatible with medical or food uses.
- tank : 125cm3
- seat adjustment : Leveling bubble and adjustable feet
- motorization of weights : possible with option
- crankcase : Light alloy aluminium AG3 + high-resistance paint
- capstan : Removable for transport
- piston/cylinder : single or dual depending the model
- weights : Ergonomic shape of the masses, easy loading of the masses on the bell - Marking corresponding with the measuring unit choose (bar, mbar, KPa, PSI etc..) – Gravity : standard (9.80665 m/s² or local gravity at your choice without supplement
- operating temperature : 18 to 28°C - 64 to 82°F
Filter your seach by measurement
Results for : High performance dead weight testers BH2
See the details
See the details
See the details
See the details
See the details
See the details
See the details
See the details
huile
BH2-30B
- measuring : from 0.1 bar to 30 bar / from 2 PSI produits.à 400 PSI
- reference : BH2-30B
- number of pistons : 1
See the details
huile
BH2-60B
- measuring : from 0.2 bar to 60 bar / from 3 PSI produits.à 800 PSI
- reference : BH2-60B
- number of pistons : 1
See the details
huile
BH2-150B
- measuring : from 0.5 bar to 150 bar / from 10 PSI produits.à 2000 PSI
- reference : BH2-150B
- number of pistons : 1
See the details
huile
BH2-300B SP
- measuring : from 1 bar to 300 bar / from 15 PSI produits.à 4000 PSI
- reference : BH2-300B SP
- number of pistons : 1
See the details
huile
BH2-300B DP
- measuring : from 1 bar to 300 bar / from 10 PSI produits.à 4000 PSI
- reference : BH2-300B DP
- number of pistons : 2
See the details
huile
BH2-400B DP
- measuring : from 1 bar to 400 bar / from 10 PSI produits.à 6000 PSI
- reference : BH2-400B DP
- number of pistons : 2
See the details
huile
BH2-400B SP
- measuring : from 1 bar to 400 bar / from 15 PSI produits.à 6000 PSI
- reference : BH2-400B SP
- number of pistons : 1
See the details
huile
BH2-600B DP
- measuring : from 1 bar to 600 bar / from 10 PSI produits.à 8000 PSI
- reference : BH2-600B DP
- number of pistons : 2
See the details
huile
BH2-600B SP
- measuring : from 2 bar to 600 bar / from 30 PSI produits.à 8000 PSI
- reference : BH2-600B SP
- number of pistons : 1
See the details
huile
BH2-700B SP
- measuring : from 2 bar to 700 bar / from 30 PSI produits.à 10000 PSI
- reference : BH2-700B SP
- number of pistons : 1
See the details
huile
BH2-700B DP
- measuring : from 1 bar to 700 bar / from 10 PSI produits.à 10000 PSI
- reference : BH2-700B DP
- number of pistons : 2
See the details
huile
BH2-1200B SP
- measuring : from 2 bar to 1200 bar / from 30 PSI produits.à 16000 PSI
- reference : BH2-1200B SP
- number of pistons : 1
See the details
huile
BH2-1200B DP
- measuring : from 1 bar to 1200 bar / from 10 PSI produits.à 16000 PSI
- reference : BH2-1200B DP
- number of pistons : 2
See the details
huile

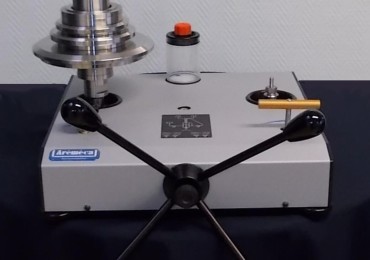

BH2-2000B
- measuring : from 40 bar to 2000 bar / from 600 PSI produits.à 30000 PSI
- reference : BH2-2000B
- number of pistons : 1
See the details
huile
BH2-2500B
- measuring : from 40 bar to 2500 bar / from 600 PSI produits.à 36200 PSI
- reference : BH2-2500B
- number of pistons : 1
See the details
huile
BH2-3000B
- measuring : from 40 bar to 3000 bar / from 600 PSI produits.à 44000 PSI
- reference : BH2-3000B
- number of pistons : 1
See the details
huile
BH2-4000B
- measuring : from 40 bar to 4000 bar / from 600 PSI produits.à 60000 PSI
- reference : BH2-4000B
- number of pistons : 1
See the details
huile
BH2-5000B
- measuring : from 40 bar to 5000 bar / from 600 PSI produits.à 72000 PSI
- reference : BH2-5000B
- number of pistons : 1
See the details
huile
BH2-6000B
- measuring : from 200 bar to 6000 bar / from 2000 PSI produits.à 80000 PSI
- reference : BH2-6000B
- number of pistons : 1
See the details
huile
BH2-7000B
- measuring : from 200 bar to 7000 bar / from 2000 PSI produits.à 100000 PSI
- reference : BH2-7000B
- number of pistons : 1
See the details
