Thishydraulic high performance range has many advantages !
- fluid : Minerals oils or demineralized water depending the model
- tank : 125cm3
- volume of fluid expelled max : 61cm3
- seat adjustment : leveling bubble and adjustable feet
- connection for the instrument to be test : Delivered with G1/2 standard – others adaptors in option
- crankcase : Light alloy aluminium AG3 + high-resistance paint
- capstan : Removable for transport
- operating temperature : 18 to 28°C – 64 to 82°F
Filter your seach by measurement
Results for : Hydraulic > Hydraulics comparison test pumps > High performance comparison test pumps CH2-CO
huile

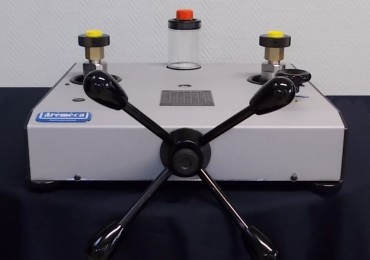

CH2-125B
- measuring : from 0 bar to 125 bar / from 0 PSI produits.à 2000 PSI
- reference : CH2-125B
- number of pistons : 1
Comparison bench high performance - hydraulic 125 bar
See the details
eau
CO-800B
- measuring : from 0 bar to 800 bar / from 0 PSI produits.à 11600 PSI
- reference : CO-800B
- number of pistons : 2
Comparison bench high performance - hydraulic 800 bar
See the details
eau
CO-1000B
- measuring : from 0 bar to 1000 bar / from 0 PSI produits.à 14500 PSI
- reference : CO-1000B
- number of pistons : 2
Comparison bench high performance - hydraulic 1000 bar
See the details
huile
CH2-1250B
- measuring : from 0 bar to 1250 bar / from 0 PSI produits.à 18000 PSI
- reference : CH2-1250B
- number of pistons : 2
Comparison bench high performance - hydraulic 1250 bar
See the details
huile
CH2-2000B
- measuring : from 0 bar to 2000 bar / from 0 PSI produits.à 30000 PSI
- reference : CH2-2000B
- number of pistons : 2
Comparison bench high performance - hydraulic 2000 bar
See the details
huile
CH2-4000B
- measuring : from 0 bar to 4000 bar / from 0 PSI produits.à 60000 PSI
- reference : CH2-4000B
- number of pistons : 2
Comparison bench high performance - hydraulic 4000 bar
See the details
huile
CH2-7000B
- measuring : from 0 bar to 7000 bar / from 0 PSI produits.à 100000 PSI
- reference : CH2-7000B
- number of pistons : 2
Comparison bench high performance - hydraulic 7000 bar
See the details
